Drills – cortex

Drills

Cortex Drills System

The special conical drill design enables efficient cutting and bone collection for autografting.

Drill Markings

The drills are laser marked for depth reference, and they are measured from the cutting tip by steps of 6 mm, 8 mm, 10 mm, 11.5 mm, 13 mm and 16 mm.

Starter drill 1.50mm

Dimensions:
ID Number:

Ø1.5mm
CD-1001

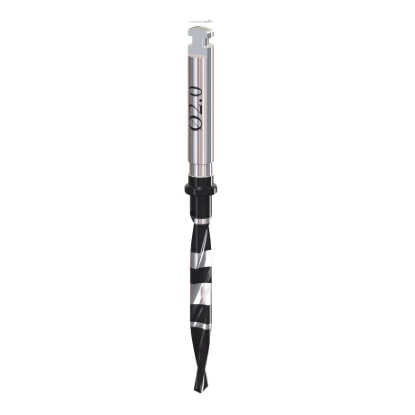

Pilot Drill Ø=2.00mm White

Dimensions:
ID Number:

Ø2mm
CD-5003

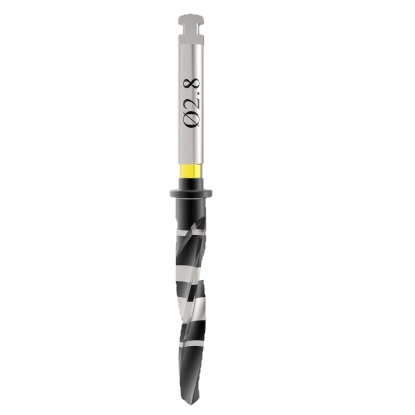

Drill Ø=2.8mm Yellow

Dimensions:
ID Number:

Ø2.8mm
CD-5010

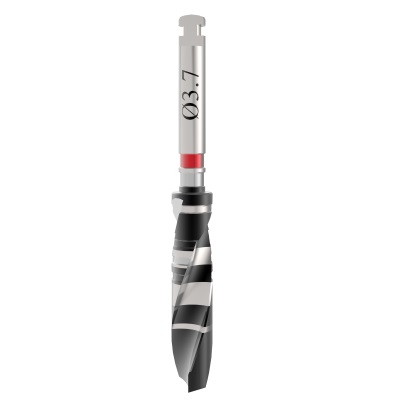

Drill for bone type D1 Dia.3.7mm for implant 3.8

Dimensions:
ID Number:

Ø3.7mm
CD-5137

Drill for bone type D1 Dia.4.1mm for implant 4.2

Dimensions:
ID Number:

Ø4.1mm
CD-5140

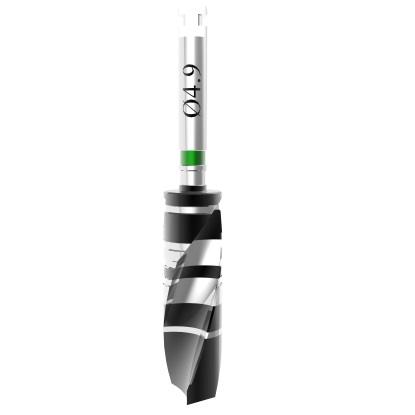

Drill for bone type D1 Dia.4.9mm for implant 5.0

Dimensions:
ID Number:

Ø4.9mm
CD-5148

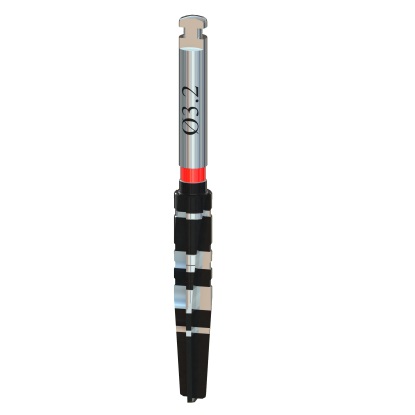

Conical Drill dia. 3.2mm for implant dia. 3.8mm

Dimensions:
ID Number:

Ø3.2mm
CD-C038

Conical Drill dia. 3.7mm for implant dia. 4.2mm

Dimensions:
ID Number:

Ø3.7mm
CD-C042

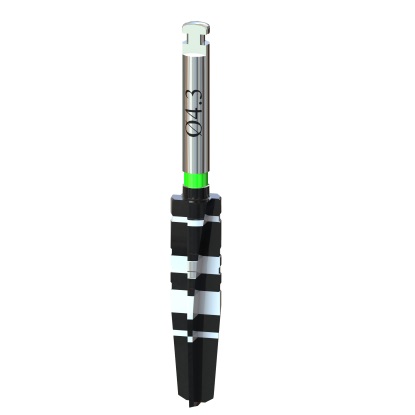

Conical Drill dia. 4.3mm for implant dia. 5.0mm

Dimensions:
ID Number:

Ø4.3mm
CD-C050

Conical Drill dia. 5.4mm for implant dia. 6.0mm

Dimensions:
ID Number:

Ø5.4mm
CD-C060

Easy2Fix guided spear 1.5mm

Dimensions:
Platform:
ID Number:

Ø1.5mm
Easy2Fix
CD-C515
